The pump MP300EM create a new record of vertical transportation

The double piston mortar pump MP300EM, as the most professional and ideal mortar spraying and conveying equipment, is lightweight and easy to move. The pump MP300EM has double pistons, one is working piston, the other one is compensating piston. Due to the discontinuous discharge the working piston make an unsteady pressure, The compensating piston make the function of compensating and adjusting output pressure for working piston, so that ensure the transmission pressure  and reduction the impact vibration in flow, and then improve the convenience and reliability of construction. The speed of conveying material is much faster than the traditional way, the maximum is 5.5m3/h. The Vertical conveying height is 60-100 meters, the horizontal of transport distance is 300 meters depends on the different conveying materials. The new generation of improved ball valve design structure can adapt to 8 mm particle mortar material, withstand the maximum 40 bar pressure according to the European safety requirements design.

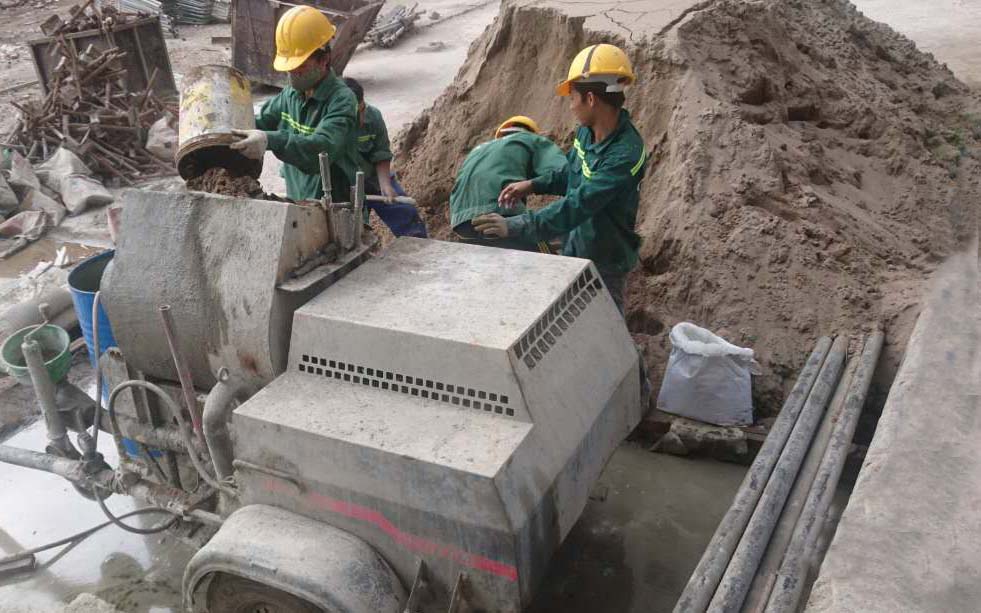

The MP300EM mortar pump of A-facility company at the construction of high-rise residential in Hanoi, Vietnam. The construction site mixing on site, using the ultra fine sand, particle size is less than 1mm and non graded sand. After realizing the vertical conveying record of the 30 floors, achieved the perfect match between the compatibility of mortar and the MP300EM equipment through the continuous optimization of reasonable allocation of additives. We refreshed a new record that mortar vertical transport is 40 floors one-level at the beginning of November 2016!

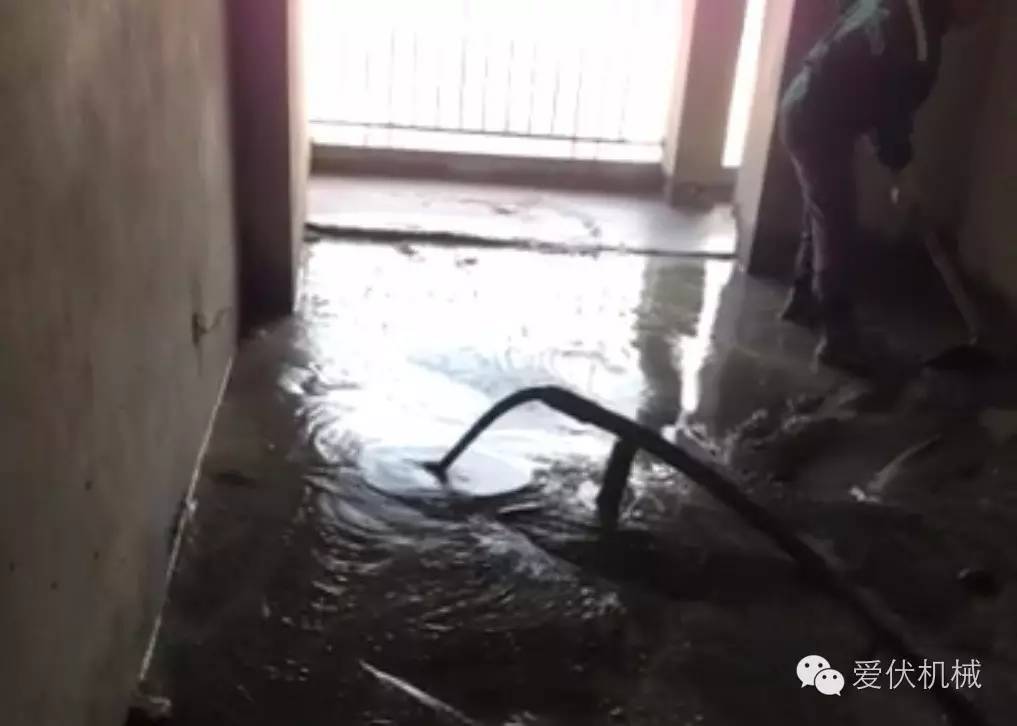

According to the records on the jobsite, the pressure of 40 floor vertical conveying was 25bar, which was the excellent pumping performance quota in super high-rise mortar grouting. The jobsite floor thickness was 10cm, Construction area nearly 40m2/h, so it was not only ensured the construction quality, but also greatly improved the labor efficiency and reduced the labor cost. The pump MP300EM's delivery cylinder using concrete pump chrome plated cylinder technology, it has long life, low cost and good economy. it dramatically reduced wear compared to the screw pump.

The modern construction management doesn't need traditional manual construction work, which is needed to promote and guarantee by modern mechanical equipment with the development of the housing industry. As an expert in the delivery of viscous fluids, A-facility provides customers with one-stop solutions and professional training from the product application technology, mortar material mixture ratio, construction technology, application etc., Improvement, innovation, leading, A-facility will be the pilot for the promote the mechanization of the construction industry!
